Manufacturer:ABB
Model Number:TD180N16KOF
Thyristor Type:High-Performance Rectifier Diode
Operating Voltage:1600V
Current Rating:1600A
Temperature Range:-40°C to +70°C
Dimensions (WxHxD):297mm x 55mm x 64mm
Weight:0.5kg
Insulation Class:Class 1
Connection Type:Terminal Block
Certifications:CE, UL, IEC

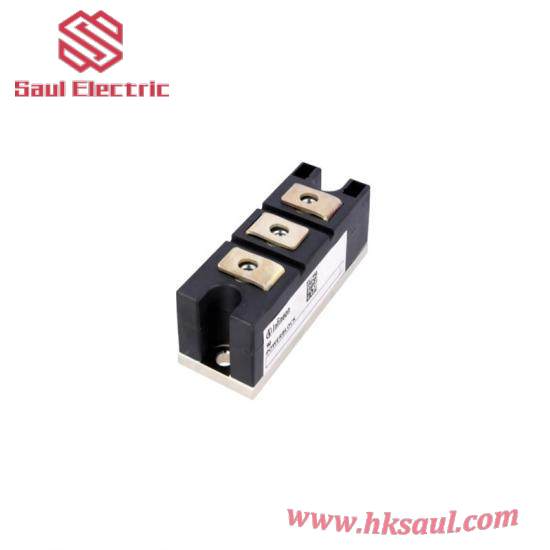

The ABB TD180N16KOF Thyristor Diode Module is engineered to provide unparalleled performance in power handling applications, boasting exceptional reliability and efficiency. Its robust design ensures it can withstand harsh operating conditions, making it ideal for industries requiring high-level power management solutions.
Featuring a rated current of 16kA and a DC voltage rating of 1600V, this module is capable of handling demanding electrical loads without compromise. The wide operating temperature range (-40°C to +70°C) allows for versatile deployment across various environments.
Equipped with high insulation resistance of more than 10MΩ, the TD180N16KOF ensures safety and minimizes the risk of electrical faults. Its MTBF (Mean Time Between Failures) rating of ≥ 10^6 hours indicates its durability and longevity, making it a reliable choice for long-term operations.
The IP20 protection rating provides basic splash and dust protection, ensuring the module remains functional in moderately dirty environments. Additionally, the module’s ability to operate at up to 1kHz frequency makes it suitable for a wide range of high-speed switching applications.
Designed with ease of integration in mind, the ABB TD180N16KOF Thyristor Diode Module offers seamless compatibility with existing systems, minimizing downtime and facilitating quick installation. Its comprehensive set of specifications and features make it a standout choice for professionals seeking top-tier power handling capabilities.
